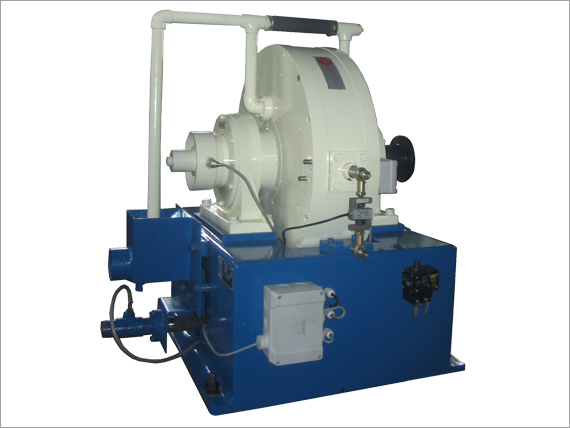

The e range of dynamometers provides a range of eddy – current machines designed for testing engines, Electric Motors and Gear Boxes from 0.75 Kw up to 720 Kw and Torque from 0.5 N-m rated to 5000 N-m Rated Torque. eddy current dynamometers are well known for their stability and suitability to operate in a closed loop mode. These provide precise control even at low loads and rapid changes in demands and provide bidirectional operation.
The rugged design of the power absorbing unit ensures a long operating life, even in the most demanding production and endurance testing environments. The rotor which is in form of a spoke disc results in low inertia. The balanced high rigidity shaft assembly on precision bearings ensures smooth operation. This long life is further enhanced by the nickel plating of critical components in contact with the water.
E series dynamometers feature a rugged design & heavy duty single coil i high quality aluminum bobbin. This ensures high reliability. Speed is measured by a pulse sensor mounted adjacent to a 60 tooth wheel on the coupling while torque is measured by a high accuracy strain gauge load cell mounted between the trunnion bearings, supported casings and bedplate. Control is achieved by varying the excitation current to the coils.
|Model||Max Power||Max Torque (N-m)||Max Speed (rpm)||Compatibility|
|E 5 HS||5 Kw||12||14000||35 - 75 cc petrol / kerosene engines, fhp motors|
|E 18||18 Kw @ 4200 to 10000 RPM||42 @ 1500 to 4200 RPM||10000||Kirloskar or equivalent 5.5 Kw @ 1500 RPM, Electric Motors, motorcycle / scooter / moped engines.|
|E 70 HS||70 bhp||120||10000||governed engines up to 15 hp @ 1500 rpm, motorcycle / scooter / moped engines.|
|E 100||100 Kw / 2390 to 7500 RPM||400 vm @ 1000 to 2390 RPM||7500|
|E 150||150 Kw @ 2865 to 7500 RPM||500 vm @ 1350 to 2865 RPM||7500||4 cylinder petrol & diesel engines, governed engines up to 70 hp@ 1500 rpm, electric motors & gearboxes|
|E 200||200 Kw @ 1910 to 6000 RPM||1000 @ 800 to 1910 RPM||6000||4 and Six Cylinder Diesel Engines, Steam Turbines, Electric Motors, Fire Pump Engines & Motors|
|E 400||544 @ 1910 to 5000 RPM||2000 @ 650 to 1910 RPM||5000||six cylinder diesel engines, Fire Pump Engines and Motors, Steam Turbines, governed engines up to 400 bhp , electric motors & gearboxes|
|E720||720 Kw @ 1528 to 3750 RPM||4500 Kw @ 400 to 1528 RPM|
